Technical Specifications

A slight suspension upgrade is recommended on the rear of the vehicle that the K-9 Kube is being fitted on.

The weight of the K-9 Kube is 280kg.

There are 2 animal compartments and each compartment is 900mm high x 550mm wide x 1050mm deep.

In most cases K-9 Kubes are installed at Council work depots.

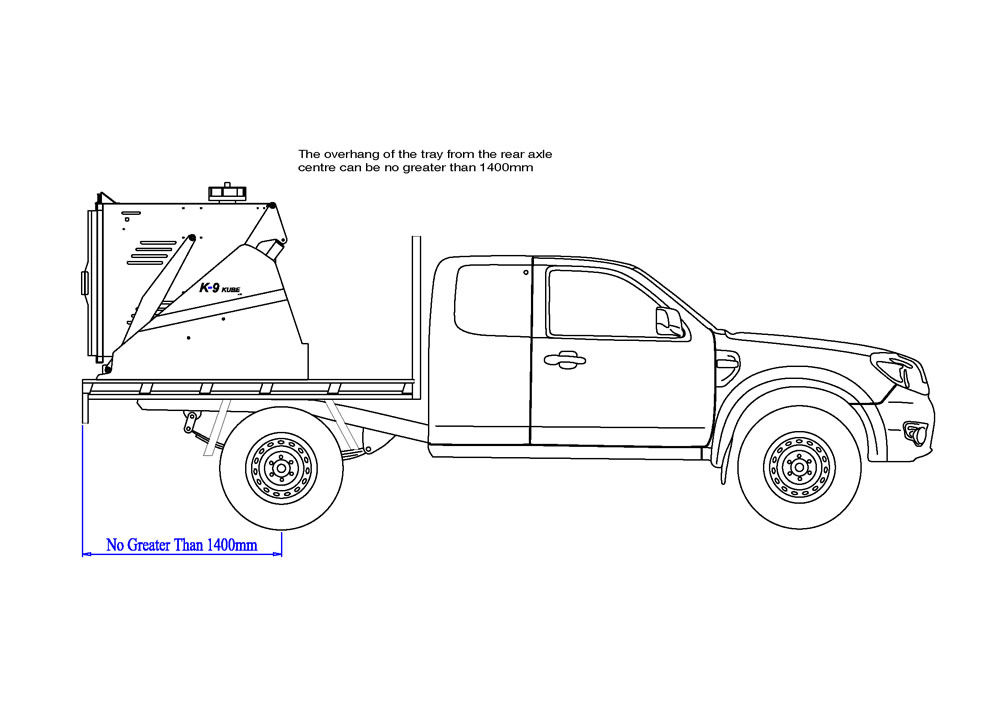

Mounting

K-9 Kubes are designed to be mounted on tray back style utes and the tray can be steel (image on the left) or aluminium (image on the right).

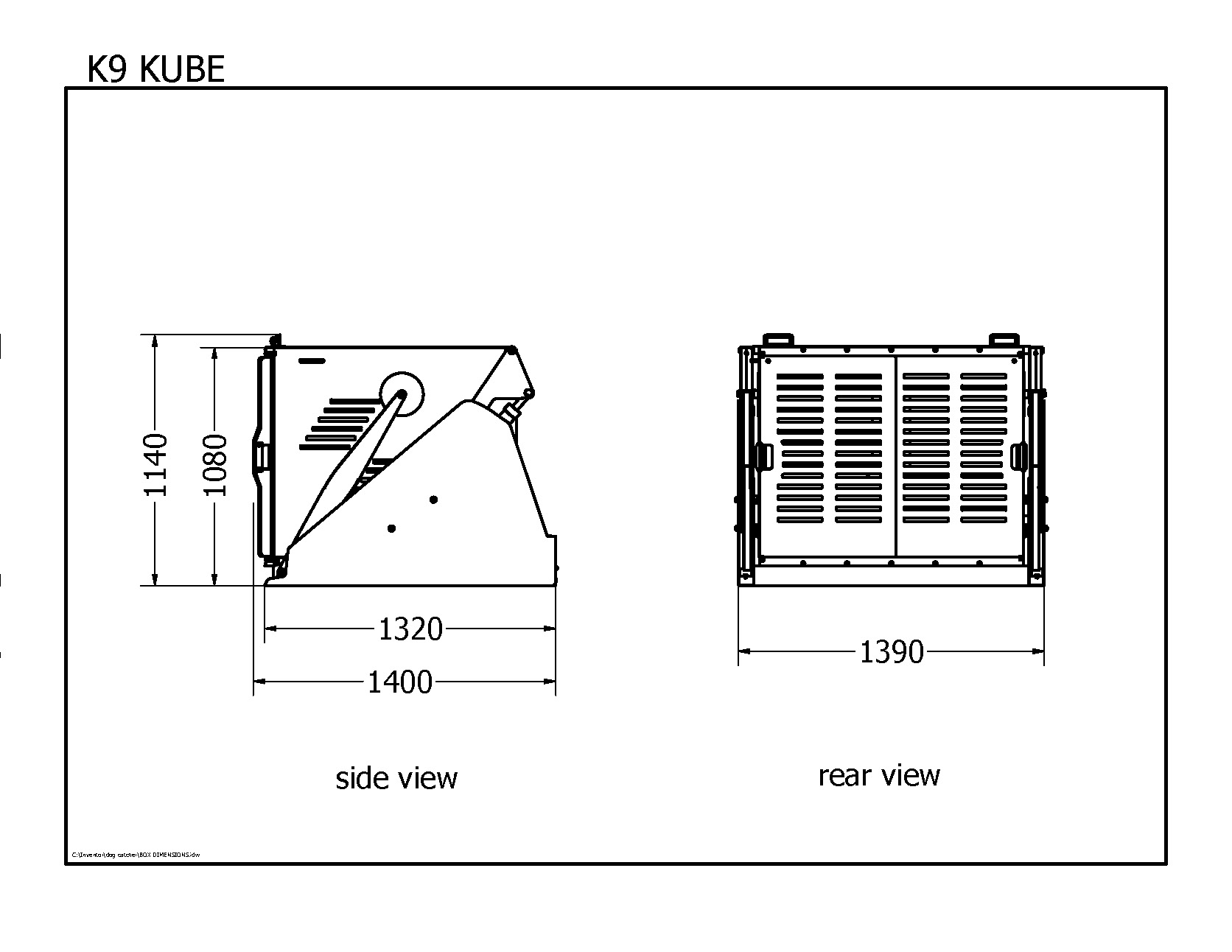

K9Kube Dimensions

(click image for a larger view)
